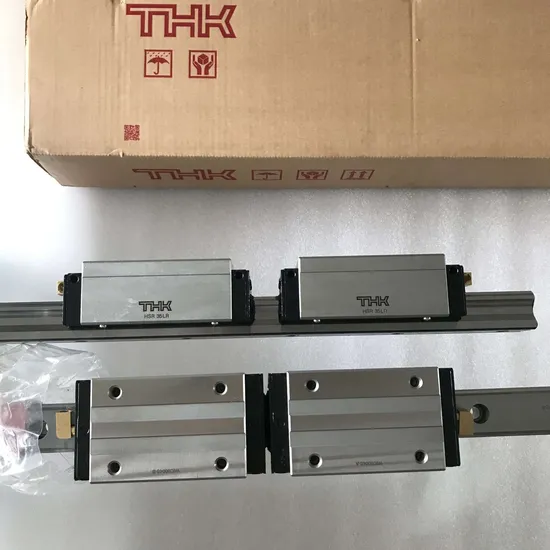

THK HSR15A HSR20A HSR25A Linear Guide Rail Slider Japan
Specifications
| Bore Diameter | 15-25 mm |
| Outer Diameter | 24-35 mm |
| Thickness | 18-26 mm |
| Model Variants | HSR15A, HSR20A, HSR20AL, HSR25A, HSR25AL |
| Origin | Japan |
| Brand | THK |
Description
Precision linear guide rail slider from THK, made in Japan. Features dustproof design and smooth motion for reliable performance. Compatible with multiple HSR series blocks and rails.
Basic Info.
Related Products
Specifications
| Model | EGW Series (25SA, 15SA, 15CA, 20SA, 20CA) |
| Rail Type | Linear Guide Rail Slider |
| Compatibility | 3D Printer, Stepper Motor Systems |
| Brand | HIWIN |
| Inner Diameter | Varies by Model |
| Outer Diameter | Varies by Model |
| Thickness | Varies by Model |
Introduction
Precision HIWIN EG series linear guides offer smooth motion and high load capacity. Ideal for 3D printers and automation equipment. Models include EGW25SA, EGW15SA, EGW15CA, EGW20SA, and EGW20CA.
Product Parameters
| Bore Diameter | 20 mm |
| Outer Diameter | 34 mm |
| Thickness | 19 mm |
Description
Precision linear guide slider from HIWIN, HGW20HC flange type with upper and lower lock design. Part of the HG series, it ensures high assembly accuracy and smooth motion for industrial automation applications.
Specifications
| Bore Diameter | 25mm |
| Outer Diameter | 50mm |
| Thickness | 30mm |
| Model | HGL25HA / HGL25CA |
| Compatibility | HGL25 Linear Guide Rail |
| Application | CNC Router, Linear Motion System |
Description
Original HIWIN linear carriage block ensures high precision and durability. Designed for HGL25 series rails, it delivers smooth motion and reliable performance in CNC and industrial automation applications.
Specifications
| Bearings Type | Linear Guide Rail |
| Model Number | EGH25SA |
| Material | Chrome Steel |
| Accuracy Class | High Precision |
| Load Type | Radial and Axial |
| Sealing Type | Double Sealed |
Introduction
High-quality linear guide rail set EGH25SA, ideal for industrial machinery requiring smooth motion and durability. Made of chrome steel with high precision and double sealing for reliable performance.
Specifications
| Bore Diameter | 25-30 mm |
| Outer Diameter | Varies by model |
| Thickness | Standard industrial grade |
Description
Precision linear motion guide rail series HGH25ca, HGH25ha, HGH30ca, HGH30ha designed for high-load, smooth operation. Ideal for CNC machinery and automation equipment requiring rigid, accurate linear movement with long service life.
Specifications
| Bearing Type | Linear Motion Block |
| Rail Compatibility | MGN12C, MGN12H, MGN15C, MGN15H |
| Brand | Hiwin/PMI/Tbi/Abba/Bdl |
| Structure | Ball Block Slide |
| Application | Linear Guide Rail System |

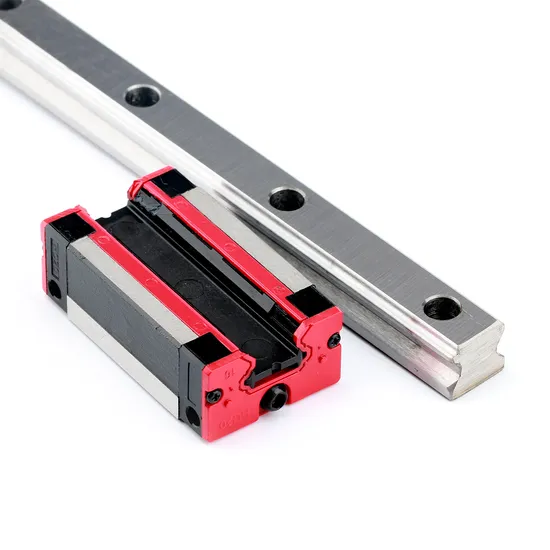

Description
Precise linear motion block compatible with MGN12C, MGN12H, MGN15C, and MGN15H rails. Designed for smooth sliding performance in industrial automation and CNC applications. Made by leading brands including Hiwin, PMI, Tbi, Abba, and Bdl. Ideal for high-load and high-precision environments.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model Compatibility | EGH25CA, EGH25SA, EGW25CA, EGW25SA, EGW30SA, EGW30CA |
| Rail Length | 3000 mm |
| Brand | China Brand BDL |
| Replacement For | HIWIN |
Description
High-quality linear guide rail slider set, compatible with HIWIN models. Features precision engineering for smooth motion and durability. Ideal for industrial automation and CNC applications requiring reliable linear movement over a 3000mm rail length.
Specifications
| Model | HGW30 HGW35CC |
| Type | Linear Guide Rail Slider Bearing |
| Load Capacity | Heavy Duty |
| Material | High Carbon Steel |
| Accuracy | High Precision |
| Application | Industrial Machinery |
Description
High quality linear guide rail slider bearing designed for heavy load and smooth motion. Features high precision and durability for industrial applications.
Specifications
| Bearing Type | Linear Motion Block |
| Rail Compatibility | MGN5C, MGN7C, MGN7H, MGN9C, MGN9H |
| Inner Diameter (mm) | Varies by model |
| Outer Diameter (mm) | Varies by model |
| Thickness (mm) | Varies by model |
| Brand Compatibility | Hiwin, PMI, TBI, ABBA, BDL |

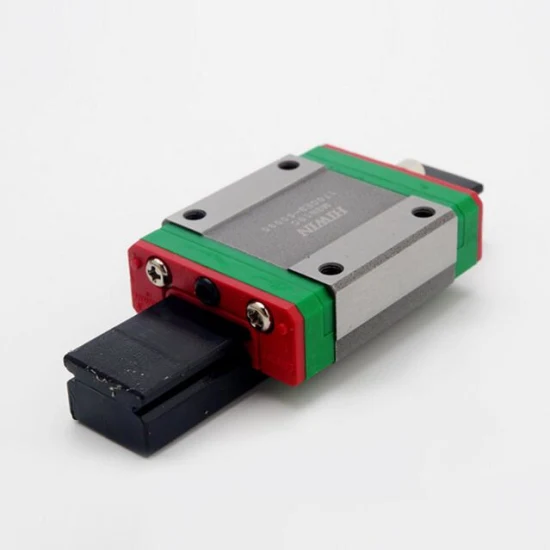

Description
Precision linear motion block compatible with MGN series rails. Designed for smooth sliding performance in compact applications. Supports high load capacity and durability across Hiwin, PMI, TBI, ABBA, and BDL systems. Ideal for CNC, 3D printers, and automation equipment.
Specifications
| Bearings Type | Linear Guide Rail |
| Model Number | HGW20CC |
| Brand Name | HIWIN |
| Material | Stainless Steel |
| Load Type | Overloaded |
| Application | CNC Grinder, Sliding Doors, Railway Tracks |

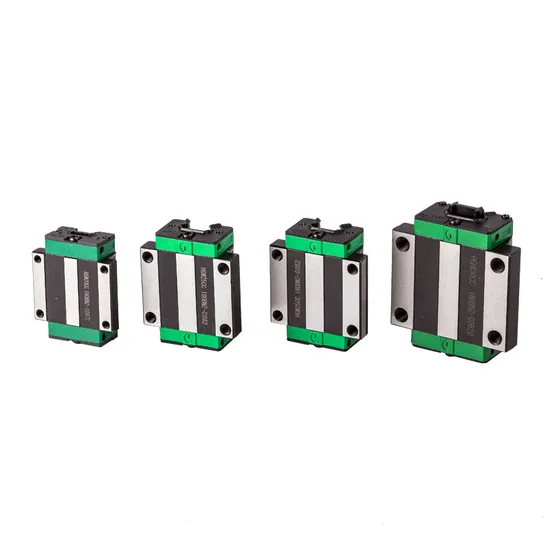

Description
High-quality silver anodized linear guide rail HGW20CC by HIWIN, designed for heavy-load applications. Ideal for CNC grinders, sliding doors, and train railway tracks with smooth sliding performance and long-lasting durability.
Specifications
| Bore Diameter | 25mm |
| Outer Diameter | 50mm |
| Thickness | 30mm |

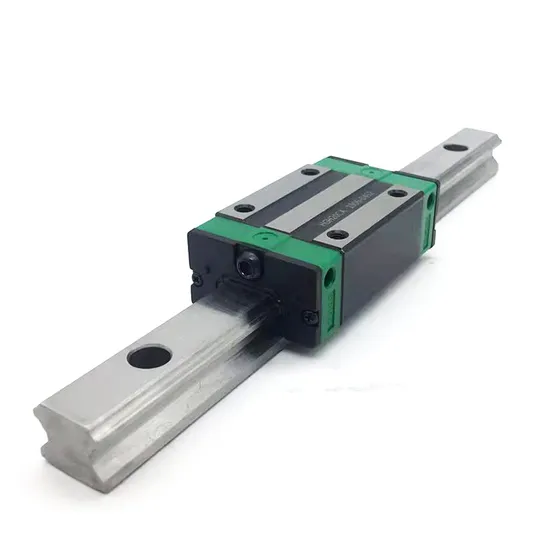

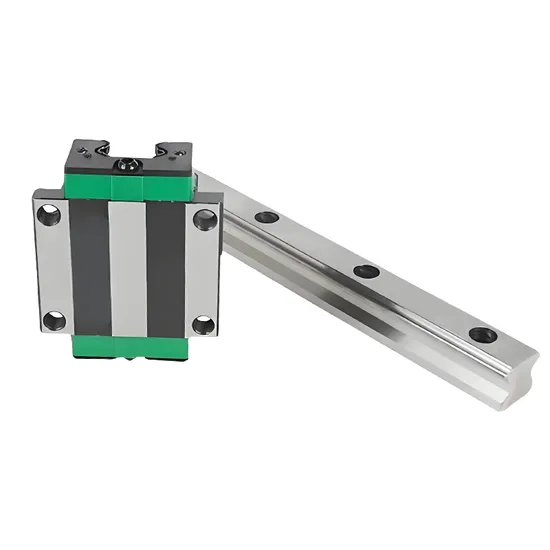

Description
Precision flange linear guide rail block slider offers smooth motion and high load capacity. Ideal for industrial automation, CNC machines, and precision equipment. Durable design ensures long-term performance.
Specifications
| Inner Diameter | 15 mm |
| Outer Diameter | Not applicable (square rail) |
| Thickness | 15 mm |
Description
Precision HGH15 square linear guide rail, 756mm length with HGW15 linear block. Ideal for industrial automation and CNC applications requiring smooth, durable linear motion. Compact 15mm profile ensures high load capacity and rigidity.
