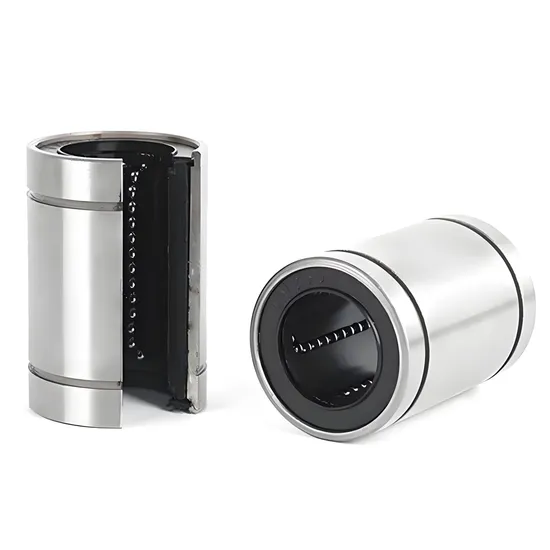

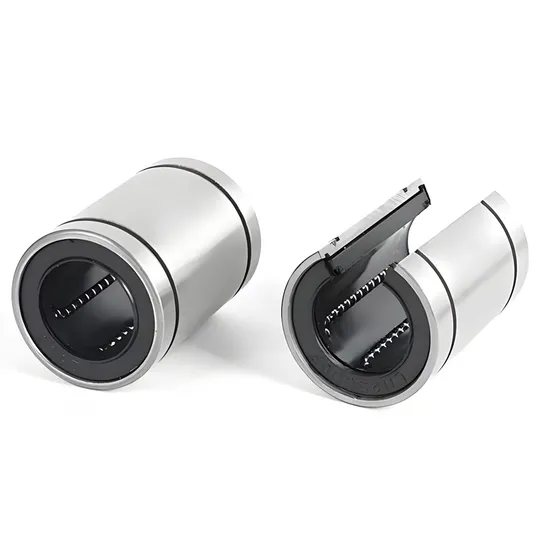

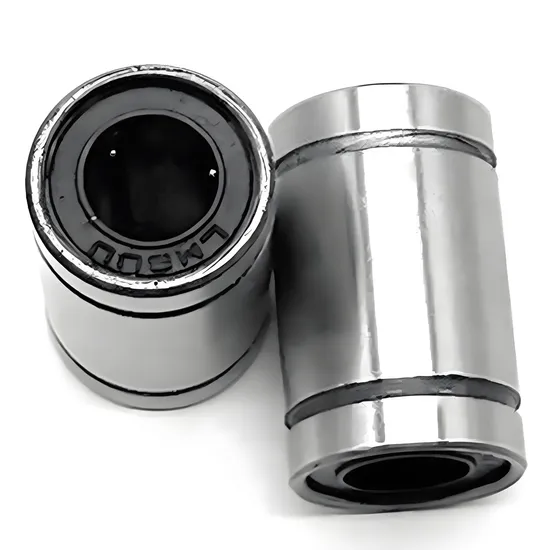

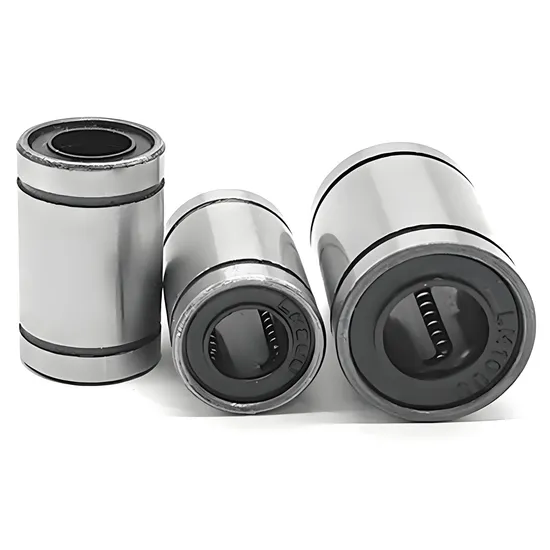

Linear Bearing LM12UU-35UU 12-35mm High Precision
Specifications
| Bore Diameter | 12mm, 13mm, 16mm, 20mm, 25mm, 30mm, 35mm |
| Outer Diameter | 21mm, 24mm, 28mm, 32mm, 42mm, 47mm, 52mm |
| Thickness | 19mm, 21mm, 26mm, 30mm, 37mm, 40mm, 44mm |
Description
Precision linear bearings for smooth motion guidance. Available in multiple sizes (LM12UU to LM35UU), ideal for industrial machinery and automation systems requiring reliable performance and durability under high load and speed conditions.
Basic Info.
