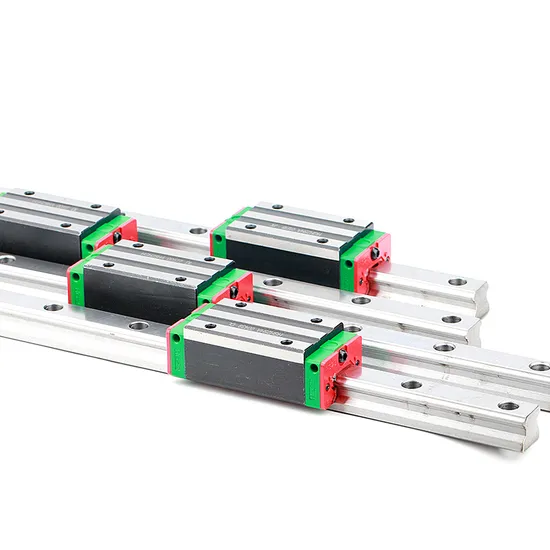

Hiwin HGL25HA Linear Carriage 25mm High Precision Slider
Specifications
| Bore Diameter | 25mm |
| Outer Diameter | 50mm |
| Thickness | 30mm |
| Model | HGL25HA / HGL25CA |
| Compatibility | HGL25 Linear Guide Rail |
| Application | CNC Router, Linear Motion System |
Description
Original HIWIN linear carriage block ensures high precision and durability. Designed for HGL25 series rails, it delivers smooth motion and reliable performance in CNC and industrial automation applications.
Basic Info.
Related Products
Specifications
| Bearings Type | Linear Motion Guide Block |
| Rail Size | HSR65 / HSR85 / HSR30-55 Series |
| Inner Diameter (ID) | Varies by model |
| Outer Diameter (OD) | Varies by model |
| Thickness | Standard industrial size |
| Origin | Japan Original |
Introduction
High-precision linear guide rail sliders from Japan, compatible with HSR series rails. Ensures smooth, durable motion control for industrial machinery.
Specifications
| Bore Diameter | 45 mm |
| Outer Diameter | 80 mm |
| Thickness | 30 mm |
| Model | HGL45CA |
| Type | Linear Guide Rail Slider |
Introduction
Premium linear guideway bearing designed for smooth, high-precision motion control. The HGL45CA slider ensures durability and performance in industrial applications.
Product Parameters
| Inner Diameter | 20-25 mm |
| Outer Diameter | Varies by model |
| Thickness | Standard industrial size |
Description
High-quality linear guides compatible with Hiwin HGW20CC, HGW20HC, HGW25CC, HGW25HC models. Factory direct supply ensures 100% replaceability and reliable performance for industrial automation applications.
Product Parameters
| Inner Diameter | 30 mm |
| Outer Diameter | 58 mm |
| Thickness | 19 mm |
Description
Precision linear slide HGW30H-C with high rigidity, silver finish, and flange extension for stable guidance in industrial applications.
Product Parameters
| Model NO. | HGR15 |
| Material | Gcr15 Bearing Steel |
| Structure | Linear Guide Rail and Block |
| Guide Length | 100-4000mm |
| Feature | Insulating, Antiseptic |
| Origin | Japan |
Product Introduction
This linear guide rail and block (Model HGR15) is made of Gcr15 bearing steel, originating from Japan. With guide length 100-4000mm, it features insulating and antiseptic properties. Suitable for various applications, offering reliable linear motion with ODM/OEM service available.
Specifications
| Bore Diameter | 15-25 mm |
| Outer Diameter | 24-35 mm |
| Thickness | 18-26 mm |
| Model Variants | HSR15A, HSR20A, HSR20AL, HSR25A, HSR25AL |
| Origin | Japan |
| Brand | THK |
Description
Precision linear guide rail slider from THK, made in Japan. Features dustproof design and smooth motion for reliable performance. Compatible with multiple HSR series blocks and rails.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model Compatibility | EGH25CA, EGH25SA, EGW25CA, EGW25SA, EGW30SA, EGW30CA |
| Rail Length | 3000 mm |
| Brand | China Brand BDL |
| Replacement For | HIWIN |
Description
High-quality linear guide rail slider set, compatible with HIWIN models. Features precision engineering for smooth motion and durability. Ideal for industrial automation and CNC applications requiring reliable linear movement over a 3000mm rail length.

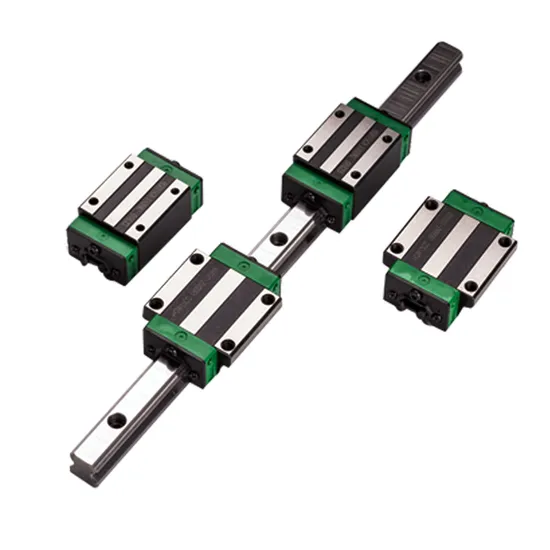

Specifications
| Bore Diameter | 35 mm |
| Outer Dimension | 78 mm x 59 mm |
| Thickness | 27 mm |
| Type | Linear Guide Block |
| Model | HGW35CC / HGW35HC |
| Application | CNC Machine, Industrial Equipment |
Description
High-precision linear motion bearing block from BDL Bearing Factory, designed for smooth and reliable guidance in industrial machinery and CNC applications.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model | HSR25R/HSR30/HSR35R |
| Inner Diameter (mm) | 25 |
| Outer Diameter (mm) | Varies by model |
| Thickness (mm) | Depends on series |
Description
Precision linear guide rail slider designed for CNC and automated equipment. Offers high load capacity, smooth motion, and durability. Compatible with standard mounting dimensions for easy integration into industrial applications.
Specifications
| Bore Diameter | 25mm |
| Outer Diameter | 50mm |
| Thickness | 30mm |
Description
Precision flange linear guide rail block slider offers smooth motion and high load capacity. Ideal for industrial automation, CNC machines, and precision equipment. Durable design ensures long-term performance.
Specifications
| Inner Diameter | 15 mm |
| Outer Diameter | Not applicable (square rail) |
| Thickness | 15 mm |
Description
Precision HGH15 square linear guide rail, 756mm length with HGW15 linear block. Ideal for industrial automation and CNC applications requiring smooth, durable linear motion. Compact 15mm profile ensures high load capacity and rigidity.
Specifications
| Model | HGW25CC |
| Rail Type | Flange |
| Accuracy Grade | C, H, P |
| Material | High-Carbon Steel |
| Dynamic Load (C) | 32.8 kN |
| Static Load (C0) | 39.5 kN |
Description
The Shangyin HGW25CC flange linear guide rail offers high precision and rigidity with accuracy grades C, H, and P. Designed for industrial automation, it ensures smooth motion, durability, and reliable performance under heavy loads.
