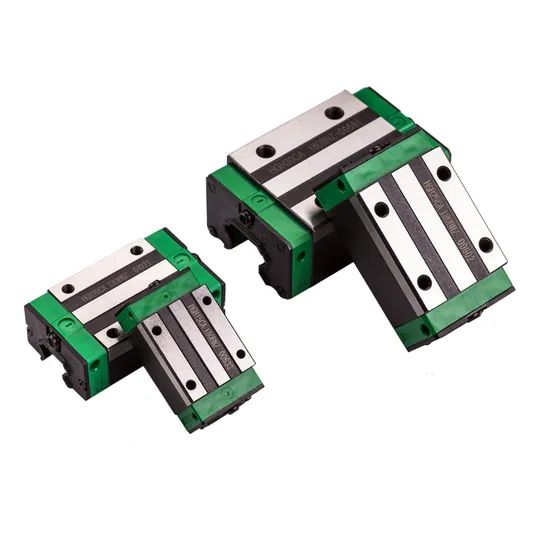

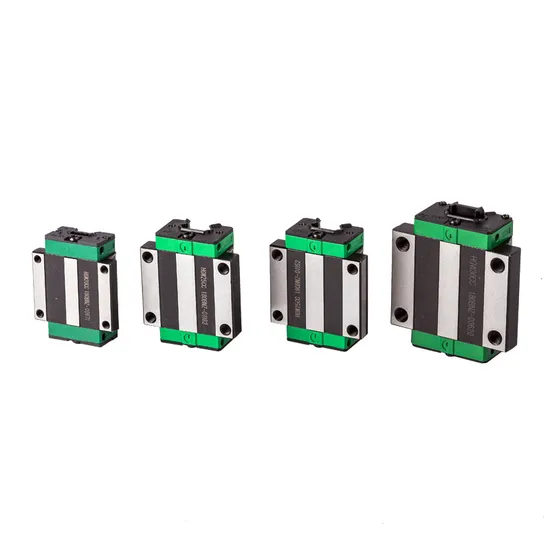

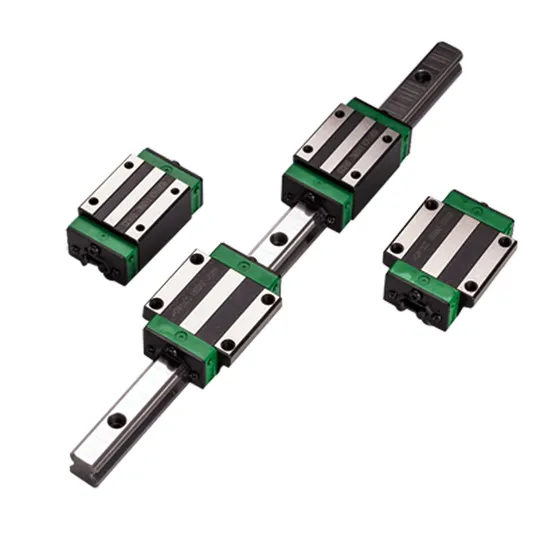

HGW20CC Linear Guide Slide Block – High Precision 20mm
Specifications
| Bore Diameter | 20 mm |
| Outer Diameter | 34 mm |
| Thickness | 19 mm |
| Type | HGW20CC Linear Guide Block |
| Precision | High Precision |
| Application | Linear Actuator Slide System |
Description
High Precision HGW20CC linear guide slide block ensures smooth and accurate linear motion. Designed for automation and industrial applications, it offers reliable performance with excellent load capacity and durability in demanding environments.
