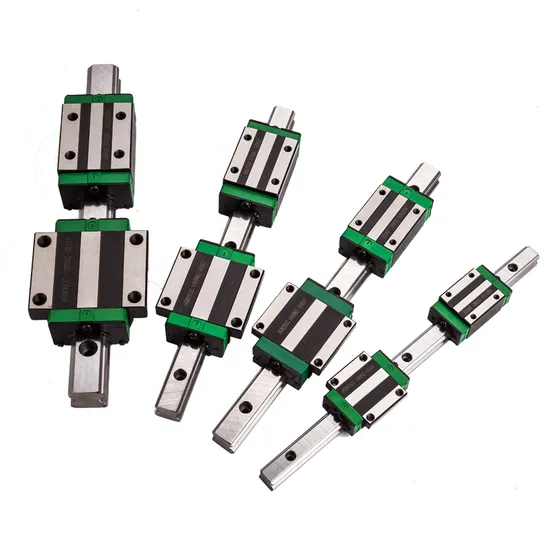

HGH15 Linear Guide Rail Slide Block High Precision
Specifications
| Model | Good Quality HGH15 Slide Block |
| Type | Linear Guide Rail |
| Material | High Carbon Steel |
| Load Type | Radial and Axial |
| Surface Treatment | Anti-rust Coating |
| Application | Industrial Automation, CNC Equipment |
Introduction
Precision HGH15 linear guide rail with smooth motion and high load capacity. Ideal for machinery requiring accurate positioning and durability.
Basic Info.
Related Products
Specifications
| Bearings Type | Linear Motion Guide Block |
| Rail Size | HSR65 / HSR85 / HSR30-55 Series |
| Inner Diameter (ID) | Varies by model |
| Outer Diameter (OD) | Varies by model |
| Thickness | Standard industrial size |
| Origin | Japan Original |
Introduction
High-precision linear guide rail sliders from Japan, compatible with HSR series rails. Ensures smooth, durable motion control for industrial machinery.
Product Parameters
| Inner Diameter | 30 mm |
| Outer Diameter | 58 mm |
| Thickness | 19 mm |
Description
Precision linear slide HGW30H-C with high rigidity, silver finish, and flange extension for stable guidance in industrial applications.
Specifications
| Bore Diameter | 25mm |
| Outer Diameter | 50mm |
| Thickness | 30mm |
| Model | HGL25HA / HGL25CA |
| Compatibility | HGL25 Linear Guide Rail |
| Application | CNC Router, Linear Motion System |
Description
Original HIWIN linear carriage block ensures high precision and durability. Designed for HGL25 series rails, it delivers smooth motion and reliable performance in CNC and industrial automation applications.
Specifications
| Inner Diameter | 15 mm |
| Outer Diameter | Not applicable (square rail) |
| Thickness | 15 mm |
Description
Precision HGH15 square linear guide rail, 756mm length with HGW15 linear block. Ideal for industrial automation and CNC applications requiring smooth, durable linear motion. Compact 15mm profile ensures high load capacity and rigidity.
Specifications
| Bearing Type | Linear Guide Rail |
| Model Number | Egh15SA/Egh15Ca/Egh20SA/Egh20Ca |
| Material | High-Carbon Steel |
| Accuracy Grade | High Precision |
| Dynamic Load Capacity | Depends on Model |
| Static Load Capacity | Depends on Model |
Overview
Precision linear guide rails and sliders from the EG series, ideal for industrial automation and machinery requiring smooth, accurate linear motion. Available in multiple models for varied load and precision needs.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model | HSR25R/HSR30/HSR35R |
| Inner Diameter (mm) | 25 |
| Outer Diameter (mm) | Varies by model |
| Thickness (mm) | Depends on series |
Description
Precision linear guide rail slider designed for CNC and automated equipment. Offers high load capacity, smooth motion, and durability. Compatible with standard mounting dimensions for easy integration into industrial applications.
Specifications
| Bore Diameter | 45-85 mm |
| Outer Diameter | Varies by model |
| Thickness | Standard industrial grade |
Description
Precision linear guide rail slider made in Japan by THK. Compatible models: HSR45A, HSR45A1UU, HSR45LA1UU, HSR55R, HSR65R, HSR85R. High durability, smooth motion, ideal for industrial automation and machinery applications requiring accurate linear movement.
Specifications
| Bearing Type | HGH20/HGW20 |
| Rail Length | 1000mm / 2000mm |
| Slider Model | HGR20 |
| Brand | HIWIN |
| Application | CNC Linear Motion |
| Compatibility | China Fit |
Description
High precision linear guide bearing set featuring HIWIN HGH20 and HGW20 sliders, compatible with HGR20 rails. Ideal for CNC machines requiring smooth sliding motion. Available in 1000mm and 2000mm rail lengths for flexible integration.
Specifications
| Bore Diameter (Inner) | 15 mm |
| Outer Diameter | 34 mm |
| Thickness | 27 mm |
Description
Precision Hiwin HGW15CC linear guide slider with flange type upper and lower lock design ensures stable operation. Part of the HG series, it offers high assembly accuracy, smooth motion, and durable performance for industrial automation applications.
Specifications
| Inner Diameter | 30mm |
| Outer Diameter | 42mm |
| Thickness | 12mm |
Description
Precision linear guide rail with high rigidity, smooth motion, and low noise operation. Silver finish offers corrosion resistance and aesthetic appeal. Designed for furniture drawer systems, ensuring reliable interchangeability and long-lasting performance in demanding applications.
Specifications
| Bore Diameter | 25-30 mm |
| Outer Diameter | Varies by model |
| Thickness | Standard industrial grade |
Description
Precision linear motion guide rail series HGH25ca, HGH25ha, HGH30ca, HGH30ha designed for high-load, smooth operation. Ideal for CNC machinery and automation equipment requiring rigid, accurate linear movement with long service life.
Specifications
| Bore Diameter | 25 mm |
| Outer Diameter | Varies by model |
| Thickness | Compact design |
Description
Precision silver linear guide rail HGW25HC, ideal for integrated processing machines. Ensures smooth motion, high load capacity, and durability in industrial applications.
