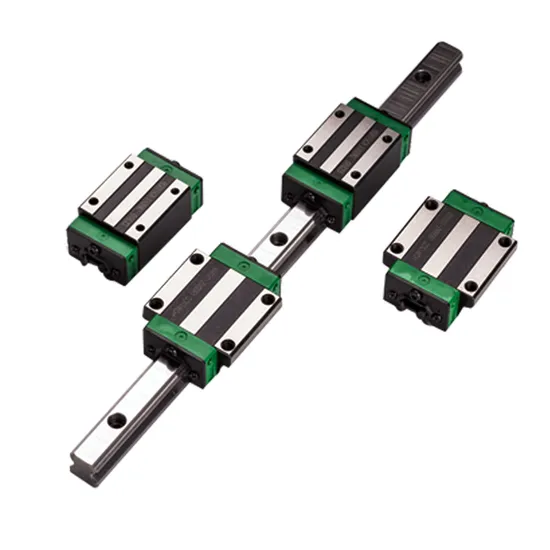

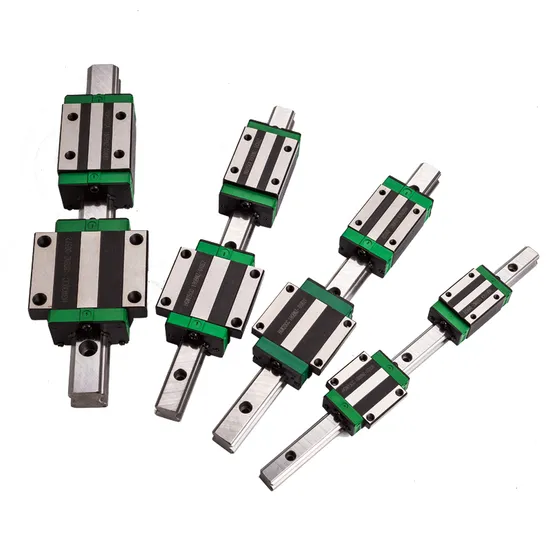

Hcr25A+60/750r Arc Guide Slide Block High Precision Curved Linear Rail
Specifications
| Inner Diameter | 25 mm |
| Outer Diameter | 60 mm |
| Thickness | 750 mm |
Description
Precision curved linear guide rail system with slide block, ideal for smooth motion control. Compact Hcr25A+60/750r design ensures durability and high performance in industrial applications requiring accurate guidance.
Basic Info.
Related Products
Specifications
| Bore Diameter | 35 mm |
| Outer Dimension | 78 mm x 59 mm |
| Thickness | 27 mm |
| Type | Linear Guide Block |
| Model | HGW35CC / HGW35HC |
| Application | CNC Machine, Industrial Equipment |
Description
High-precision linear motion bearing block from BDL Bearing Factory, designed for smooth and reliable guidance in industrial machinery and CNC applications.
Specifications
| Bearing Type | Linear Motion Block |
| Rail Compatibility | MGN12C, MGN12H, MGN15C, MGN15H |
| Brand | Hiwin/PMI/Tbi/Abba/Bdl |
| Structure | Ball Block Slide |
| Application | Linear Guide Rail System |
Description
Precise linear motion block compatible with MGN12C, MGN12H, MGN15C, and MGN15H rails. Designed for smooth sliding performance in industrial automation and CNC applications. Made by leading brands including Hiwin, PMI, Tbi, Abba, and Bdl. Ideal for high-load and high-precision environments.
Specifications
| Bore Diameter (Inner) | 15 mm |
| Outer Diameter | 34 mm |
| Thickness | 27 mm |
Description
Precision Hiwin HGW15CC linear guide slider with flange type upper and lower lock design ensures stable operation. Part of the HG series, it offers high assembly accuracy, smooth motion, and durable performance for industrial automation applications.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model | HSR25R/HSR30/HSR35R |
| Inner Diameter (mm) | 25 |
| Outer Diameter (mm) | Varies by model |
| Thickness (mm) | Depends on series |
Description
Precision linear guide rail slider designed for CNC and automated equipment. Offers high load capacity, smooth motion, and durability. Compatible with standard mounting dimensions for easy integration into industrial applications.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model Compatibility | EGH25CA, EGH25SA, EGW25CA, EGW25SA, EGW30SA, EGW30CA |
| Rail Length | 3000 mm |
| Brand | China Brand BDL |
| Replacement For | HIWIN |
Description
High-quality linear guide rail slider set, compatible with HIWIN models. Features precision engineering for smooth motion and durability. Ideal for industrial automation and CNC applications requiring reliable linear movement over a 3000mm rail length.
Specifications
| Bore Diameter | 25 mm |
| Outer Diameter | Varies by model |
| Thickness | Compact design |
Description
Precision silver linear guide rail HGW25HC, ideal for integrated processing machines. Ensures smooth motion, high load capacity, and durability in industrial applications.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model Series | MGW Mini Linear Series |
| Compatibility | HIWIN, PMI, TBI, ABBA, BDL |
| Models Included | MGW12C, MGW12H, MGW15C, MGW15H |
| Component Type | Linear Motion Block Slide |
| Core Mechanism | Ball Block Design |
Introduction
Compact linear guide sliders from the MGW Mini Series offer high precision and smooth motion. Compatible across major brands like HIWIN, PMI, and TBI, these blocks are ideal for space-constrained applications requiring reliable performance.
Specifications
| Bore Diameter | 45 mm |
| Outer Diameter | 80 mm |
| Thickness | 30 mm |
| Model | HGL45CA |
| Type | Linear Guide Rail Slider |
Introduction
Premium linear guideway bearing designed for smooth, high-precision motion control. The HGL45CA slider ensures durability and performance in industrial applications.
Specifications
| Bearing Type | Linear Guide Rail |
| Model Number | Egh15SA/Egh15Ca/Egh20SA/Egh20Ca |
| Material | High-Carbon Steel |
| Accuracy Grade | High Precision |
| Dynamic Load Capacity | Depends on Model |
| Static Load Capacity | Depends on Model |
Overview
Precision linear guide rails and sliders from the EG series, ideal for industrial automation and machinery requiring smooth, accurate linear motion. Available in multiple models for varied load and precision needs.
Specifications
| Bearing Type | HGH20/HGW20 |
| Rail Length | 1000mm / 2000mm |
| Slider Model | HGR20 |
| Brand | HIWIN |
| Application | CNC Linear Motion |
| Compatibility | China Fit |
Description
High precision linear guide bearing set featuring HIWIN HGH20 and HGW20 sliders, compatible with HGR20 rails. Ideal for CNC machines requiring smooth sliding motion. Available in 1000mm and 2000mm rail lengths for flexible integration.
Specifications
| Model | HGW45CC / HGW45HC |
| Brand | HIWIN Equivalent |
| Type | Linear Guide Rail and Block |
| Material | High-Carbon Steel |
| Replacement | 100% Interchangeable |
Description
High-precision linear guides designed as direct replacements for HIWIN HGW45CC and HGW45HC models. Ensures smooth motion, durability, and exact fit in industrial automation systems.
Specifications
| Bearings Type | Linear Guideway |
| Model Number | Hgl30 / Hgl35 |
| Slide Block Model | Hgl30ca, Hgl30ha, Hgl35ca, Hgl35ha |
| Structure | Open Type |
| Material | High-Carbon Steel |
| Application | Industrial Machinery |
Description
The Hgl series linear guideway offers high precision and durability for industrial applications. Compatible models include Hgl30ca, Hgl30ha, Hgl35ca, and Hgl35ha, designed for smooth motion control and reliable performance in machinery systems requiring accurate positioning.
