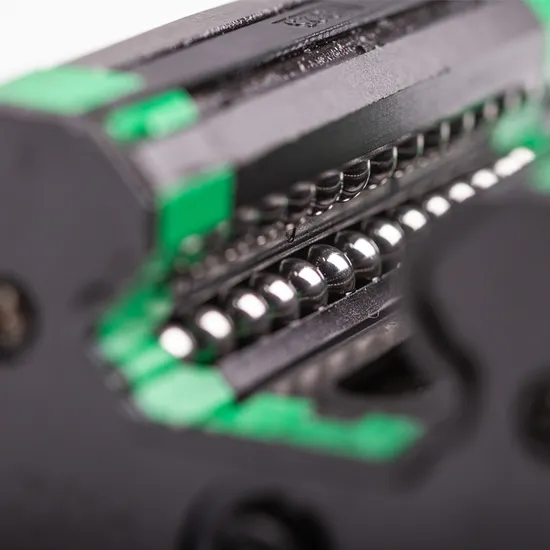

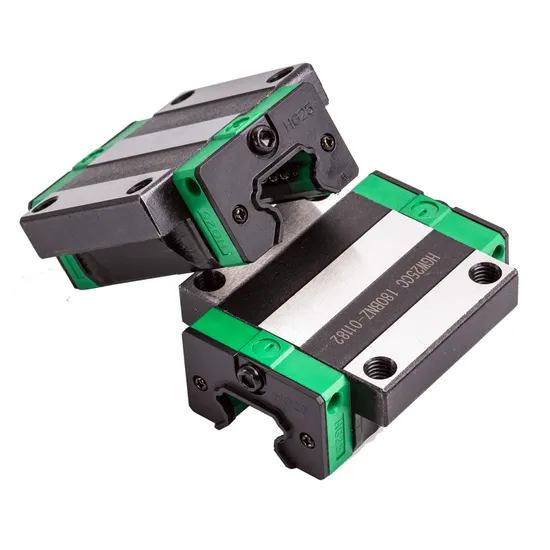

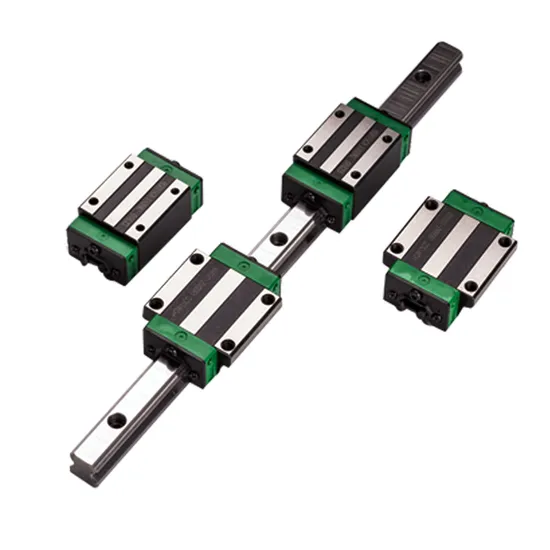

CNC Machine Slide Block Bearing HGH15 HGH20 High Precision Linear Guide
Specifications
| Inner Diameter | 15-20mm |
| Outer Diameter | Varies by model |
| Thickness | Standard industrial grade |
Description
High-precision linear guide bearing for CNC machines, model HGH15/HGH20. Factory direct sale ensures competitive pricing. Ideal for smooth sliding motion in industrial applications. Durable construction with reliable performance.
