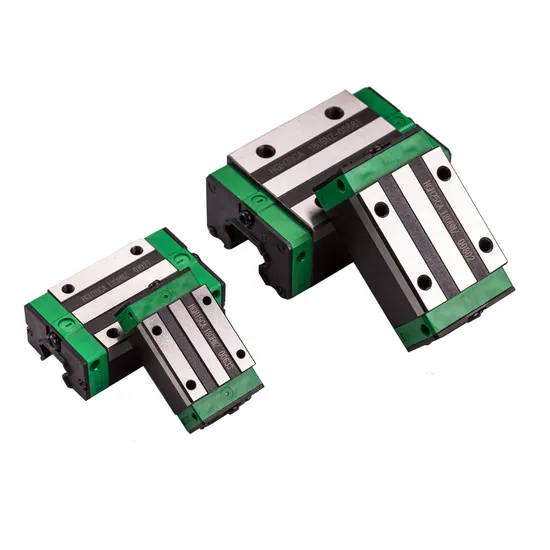

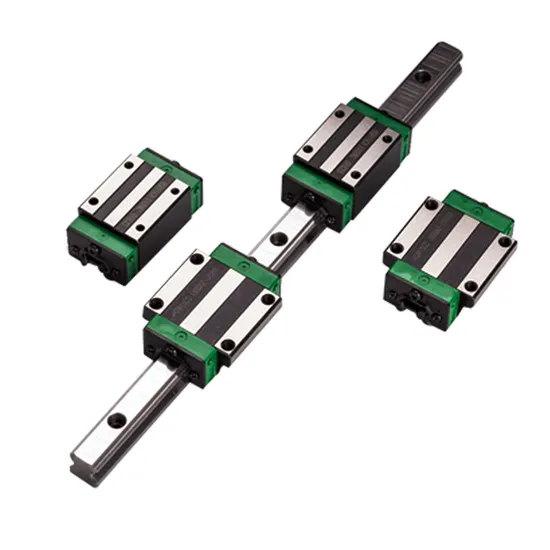

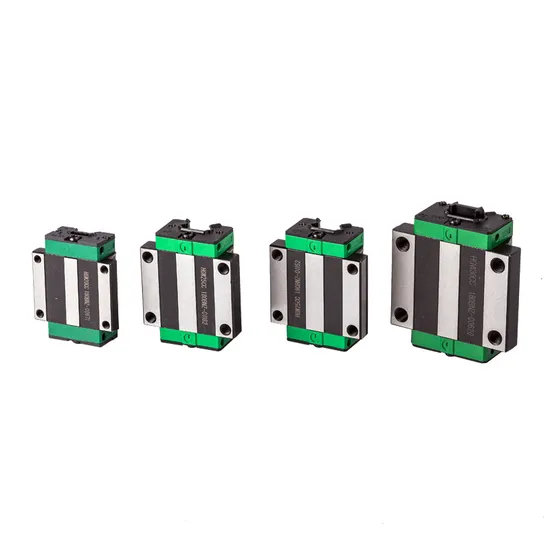

CNC EG Series EGH15CA EGR15 Linear Guide Block
Specifications
| Bearing Type | EGR15 Linear Square Block |
| Rail Width | 15 mm |
| Dynamic Load Capacity | 8.7 kN |
| Static Load Capacity | 10.3 kN |
| Material | High-Carbon Steel |
| Application | CNC Machines, Automation Equipment |
Description
Precision CNC EGH15CA EGR15 linear slide guide with smooth motion and high load capacity. Ideal for industrial automation and machinery requiring accurate linear movement. Durable high-carbon steel construction ensures long service life under heavy loads.
