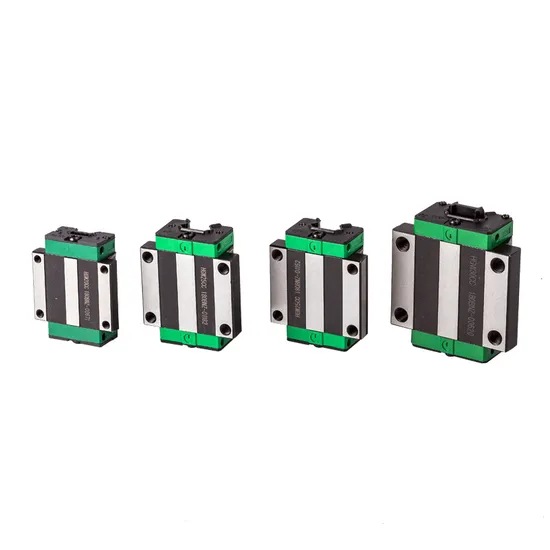

CE Series Linear Guide Rail for Punch Machine – High Precision & Low Cost
Specifications
| Inner Diameter | 25 mm |
| Outer Diameter | 35 mm |
| Thickness | 7 mm |
| Model | CE Series |
| Type | Linear Guide Slide Block |
| Compatibility | CNC Lathe Accessories |
Description
Precision linear guide rail with interchangeable slide block for CNC machines. Durable construction, moderate pricing, and smooth operation make it ideal for industrial automation and lathe applications.
