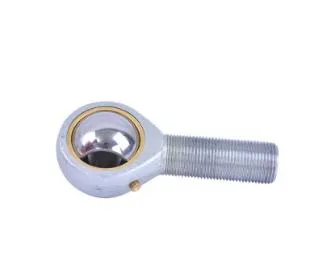

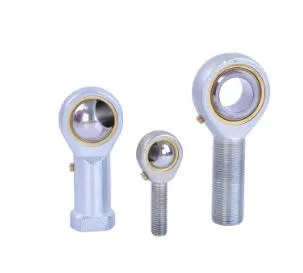

BDL Rod Ends Bearing Hydraulic Cylinder Spherical Series Catalog
Specifications
| Inner Diameter | 15 mm |
| Outer Diameter | 32 mm |
| Thickness | 18 mm |
Description
Precision spherical rod end bearing designed for hydraulic cylinder applications. Part of the Bdl series, this durable bearing ensures smooth articulation under high load. Ideal for industrial machinery and mobile equipment. Refer to the product catalogue for full technical details and compatibility.
