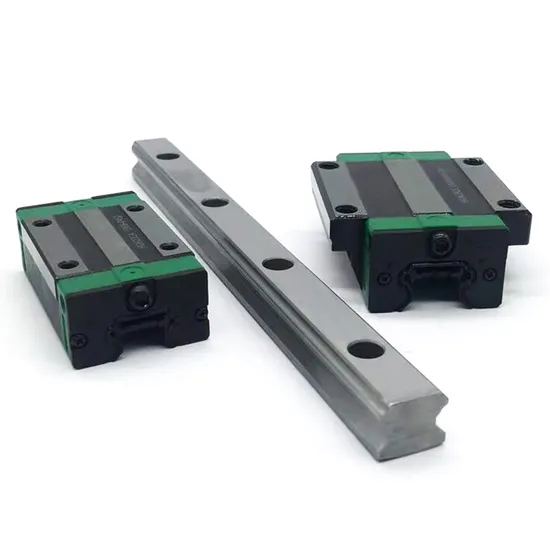

BDL HGH55CA/HA Linear Guide Block 100-4000mm High Load Capacity
Specifications
| Bearing Type | Linear Guide Slider Block |
| Model Compatibility | HGH55CA, HGH55HA, HGH65CA, HGH65HA |
| Rail Length Range | 100 – 4000 mm |
| Material | High-Carbon Steel |
| Load Type | Radial and Axial |
| Accuracy Grade | High Precision |
Description
High-precision linear guide slider block compatible with HGH55/65 series, ensuring smooth motion and durability. Ideal for industrial automation and CNC applications requiring reliable linear movement over extended rail lengths.
