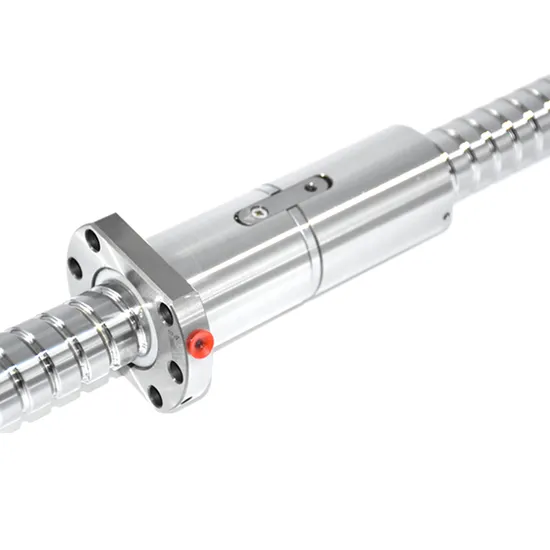

Ball Screw Dfu2005-3 CNC Machine High Precision 20x5mm
Specifications
| Bore Diameter | 20 mm / 25 mm |
| Outer Diameter | 32 mm / 38 mm |
| Thickness | 5 mm / 10 mm |
| Model Variants | DFU2005-3, DFU2005-4, DFU2010-3/2, DFU2505-3 |
| Application | CNC Machines & Machining Centers |
Description
Precision ball screw transmission element designed for high-accuracy CNC machines and machining centers. Available in multiple configurations to suit various industrial applications requiring reliable linear motion control.
Basic Info.
